Departments & Project Management

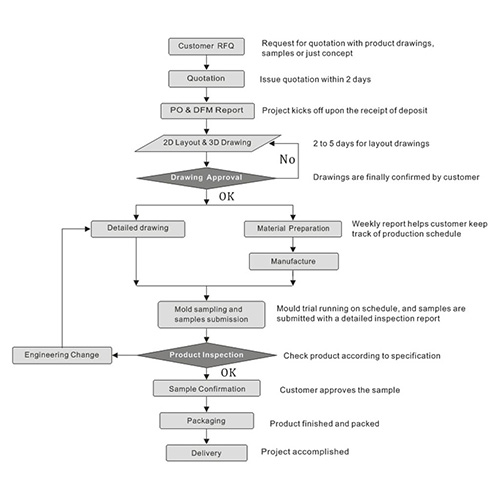

RFQ Process

Tooling quoting: There are 3 experienced quoting engineers having more than 10 years experiences, familiar very well for HASCO and DME mold standard and processing. After getting the RFQ information from marketing colleagues, quoting engineers estimate the projects in detail to make best quoting, provide reasonable quoting quickly and correctly, and will provide workable and reasonable suggestions according part design from customer, work as a team to support customer to win the projects. Within 24 hours, the quotation will be provided.

The file formats of part design are accepted as following:

•IGES (.igs) •Compressed folders (.ZIP) can contain any combination of the above model file types

•PDF (.pdf) •Pro-E

•STEP (.stp) •Cartia

•SolidWorks (.sldprt) •U.G.

•PTC Creo (.prt) •AutoCAD (.dwg, 3D only)

•Autodesk Inventor (.ipt) •PTC Creo (.prt)

DFM & Mold Design

We provide engineering guidance to help you design moldable parts that are optimized for manufacture. From tool design concepts to process development and validation, we ensure that all aspects of production meet the ultimate goal of producing high-quality injection molded parts.

Product Design Assistance

Support in the design of product features, specs and industrial design follow. We can support you in development of your new projects or re-design current products and implement these steps on behalf of clients by meeting in person and teleconferencing with you and your sales & marketing and technical people each step of the way.

Product Development Support:

•Early Stage Engineering Support

•Quality Requirement Planning

•Material Selection Consultation

•Mold Concept Planning

•Part Optimizing

•Design For Manufacturing

•Cycle Time Optimization

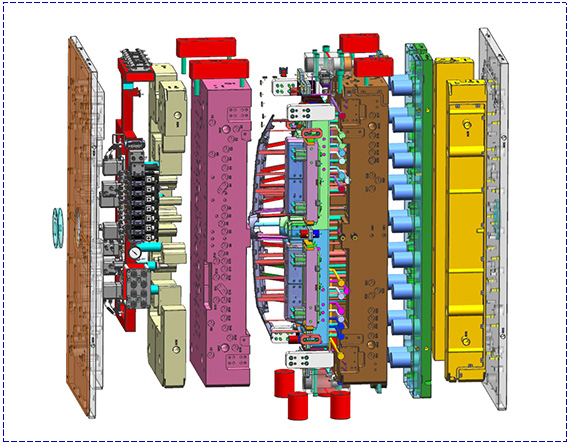

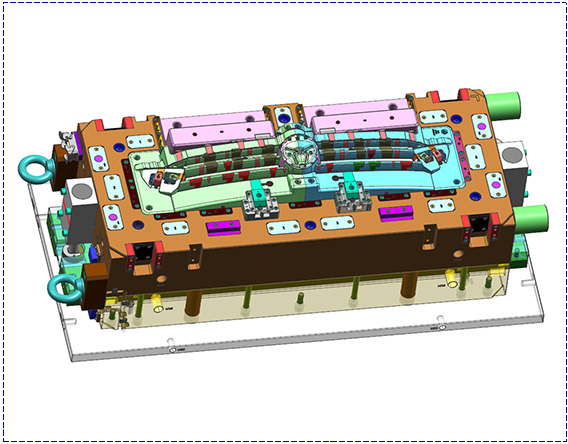

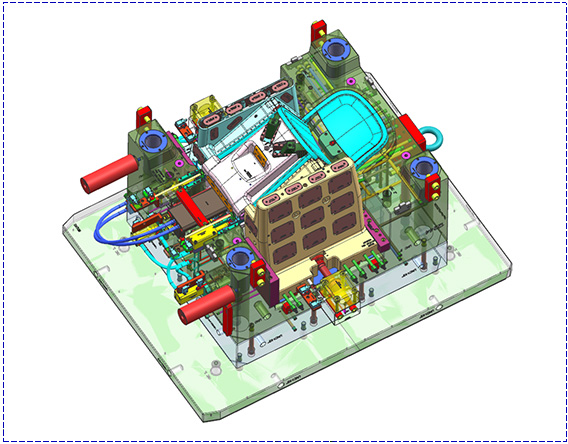

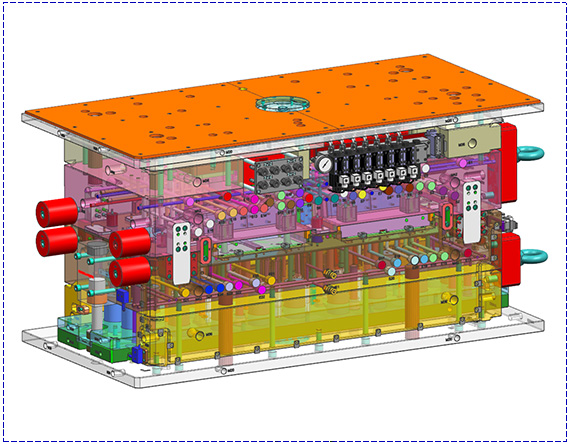

Mold Design Support: Engineering Software

•Mold drawing 2D •Auto CAD

•Mold drawing 3D •Unigraphics NX

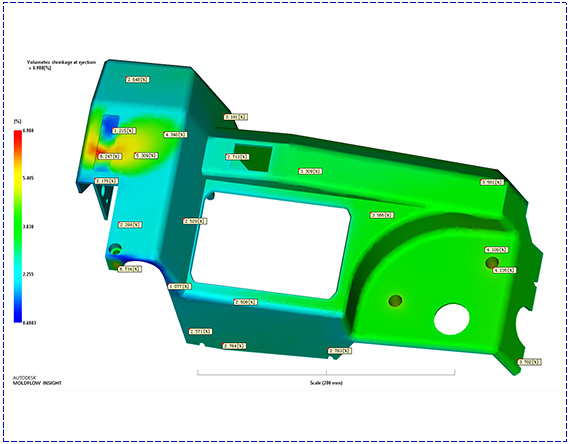

•Design for Manufacturability •Autodesk Moldflow

•Mold Design Checking

•Mold Design Specification

•Mold Design Optimizing

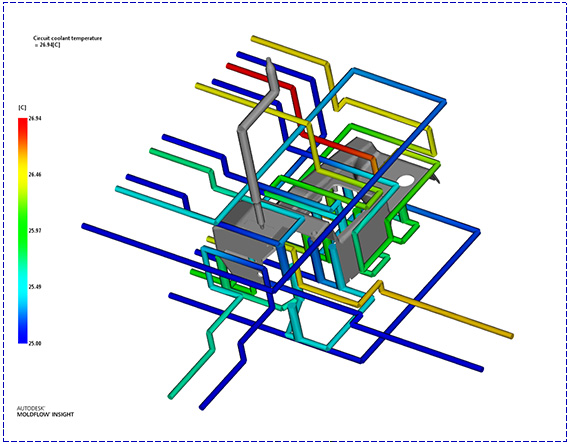

•Cooling Design Optimization

Steel purchasing

Once the project is confirmed, our purchasing department will order the necessary materials from our suppliers in line with the customer's requirements and as per the engineer's instructions..we has our honest and reliable supplier teams, who have specialized experiences in their fields, supply good quality products and services, to support our projects are going smoothly and successfully.

Mold Steel:	LKM	LKM2767, LKM2344, LKM818H, LKM838H, LKM738H, LKM2311, LKM2312
	ASSAB(Sweden)	IMPAX 718S, IMPAX 718H, STAVAX S136, STAVAX S136H
	DAIDO (Japan)	PX88, NAK55, NAK80,DC11, DC53
	FINKL (America)	P20HH, P20;
	AUBERT & DUVAL	ADC3, SMV3W
Mold Base:	DME, HASCO, FUTABA, LKM
Hot Runner:	MOULD MASTER, Master TIP, HUSKY, HASCO, DME, YUDO, INCOE, THERMOPLAY
Standard Parts:	DME, HASCO, NEAREST ANSI STANDARD, NEAREST DIN STANDARD, LKM,
Texture:	Mold-Tech, YIXIN
Software:	UG, Pro-E, Moldflow, A-CAD, Power Mill

Project Management

We have eight (8) professional English-speaking project management engineers to follow tooling design, tooling making and testing to provide services as below for you:

Early Stage Engineering Support

Quality Requirement Planning

Material Selection Consultation

Mold Concept Planning

Design for manufacturability Services

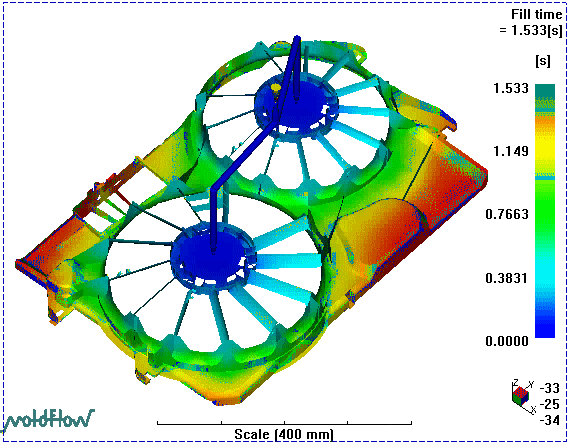

Mold flow analysis Services

Product Testing Services

Material Testing and Validation Services

Product Development Services

Product Design Assistance

Professional Engineering Services

Projects Schedule Planning

Tooling Weekly Process Report

Mold Trailing

Mold & molding validation report

Exception handing in logistics

Mold Manufacturing

Equipped with more than 40 sets of advanced major mold machining and testing equipment, including large gantry CNC, high-speed CNC, large two-head EDM, precision mirror surface EDM, Japan Sodick Slow Feed Wire-cutting machine, high precision CMM, etc, Wider Sea Mold is able to manufacture 30-60 sets of large, medium and small molds per month in house by its dedicated project management team, highly experienced design team (UG, CAD, MOLDFLOW), precision machining technology and skilled assembly technicians.

l High cavitation molds	l Close tolerance molding
l Appropriate hot runner design and selection	l Elastomeric molding
l Low cycle molds (5000 shots)	l Compression molding
l High cycle molds (over 10 million)	l In-mold labeling
l Multi-material molding(2K)	l Thin wall molding
l Insert molding	l Over molding
l Gas assist molding	l High heat molding
l Foam injection techniques	l Precise part molding

Quality Control

We are confident that our QA team will ensure the quality of your project along with the newest equipment, which we always update, to cater to the demand of customers.

Mold Design Control

Mold Steel Hardness Inspection

Mold Electrodes Inspection

Mold Core and Cavity Steel Dimension Inspection

Mold Pre-Assembly Inspection

Mold Trial Report and Sample Inspection

Pre-Shipment Final Inspection

Export Product Package Inspection

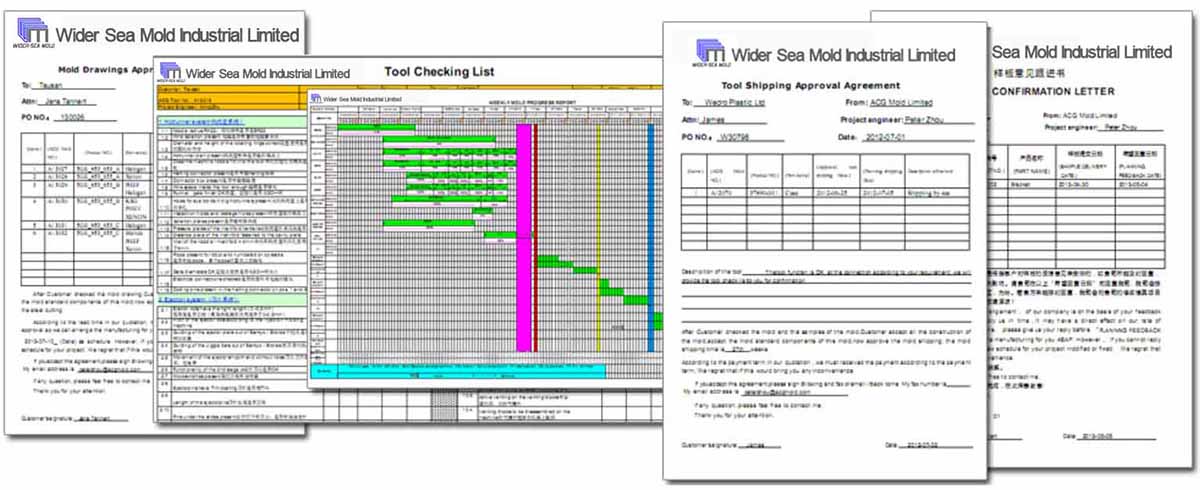

Mold Weekly Report and Mold Schedule are provided to customer every Friday. Sometimes mold manufacturing or trial video would be sent to customer so that customer can know of the mold clearly.

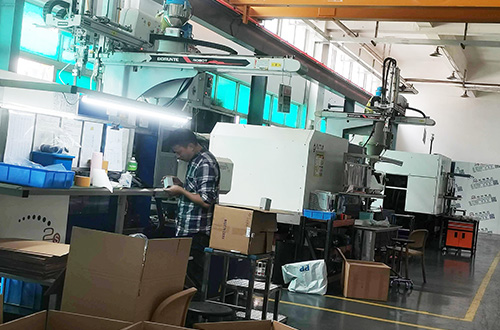

Mold Trial

Each mold runs six hours for production trial to ensure the export part quality is our quality standard qualification, 4 hours with material and 2 hours without material, this can guarantee the molds are problem-free before shipping.

And, the first samples along with part inspection report will be provided within 3 days after mold trial. And we can also do the PPAP and scientific molding analysis as your request.

At the same time, mold trial video and the whole process and injection parameters data will be provided for your reference.

Shipment

Logistics / Finalization

Finalization is an end process by our quality team to make sure everything is ready for shipping and meets all the customer requirements and specifications.

Documentation

Complete documentation, 2D Mold Drawing and 3D Mold Drawings, trial parameters, trial video, material certifications, Dimensional Report

Final Mold Test

Depending on customer requirements we can run the tool for up to 8 hours before shipping (with resin supplied)

Specifications

Quality team will review the original customer specifications to insure all requirements have been met

Packaging

Vacuum sealed and special shipping container to prevent damage during shipment

Goods will reach at the customers' destination in perfect condition.

For transport:

■ 3-5 working days by express-DHL or UPS

■ 12-15 working days by air-freight

■ 35-40 working days by sea-freight
